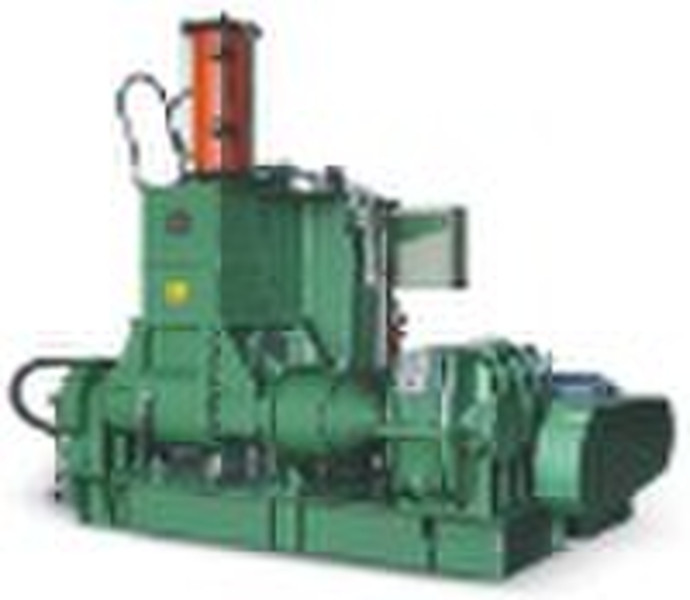

Dispersion Kneader

Usage:MostSuitableKneadingapplication:EVA.Rubber&TPR,Sole,RubberRoller,Hoses,Belts,Sponges,Sportbolls,Vibration Insulator,ElasticCord,SealingMaterials,Tire,tapes,MasterBatches,Pigment,InkAutomobile&ElectricRubberParts,ChemicalIndustryCompounds. Features: 1. The machine is equipped with automatic temperature and time control system, the operation is easy and accurate. The mixing can attain the best dispersion and uniformity. 2. The dump type mixing tank and the adoption of dry mechanical seal to seal up the mixer shaft, which makes us easy to clean chamber and change colors. 3. The mixing time is 6-10 minutes/batch, and the output is equivalent to 2-3units of open mixing mill. 4. The sealed mixing chamber can provide high mixing performance and prevent the environment from being polluted. 5. The machine has low fault rate and low running cost, which is easy to install, operate and maintain. Specifications: Model:X(S)N-55 Total volume of mixingchamber(L):125Working volume of mixing chamber(L):55 Driving motor power(KW):75Tiltingmotor power(KW):3.0 Tilting angle:140Rotational speed of the rotor(front/rear):30/24.5r/min Pressyre of compressed air (Mpa):0.6 0.8Consumed capacity of compressed air:1.0m/3min Pressure of cooling water(rubber mixing)(Mpa):0.3 0.4Pressure of heating steam(plastics mixing)(Mpa):0.5 0.8Overall dimensions:L3280mm*W1950mm*H3020mm
